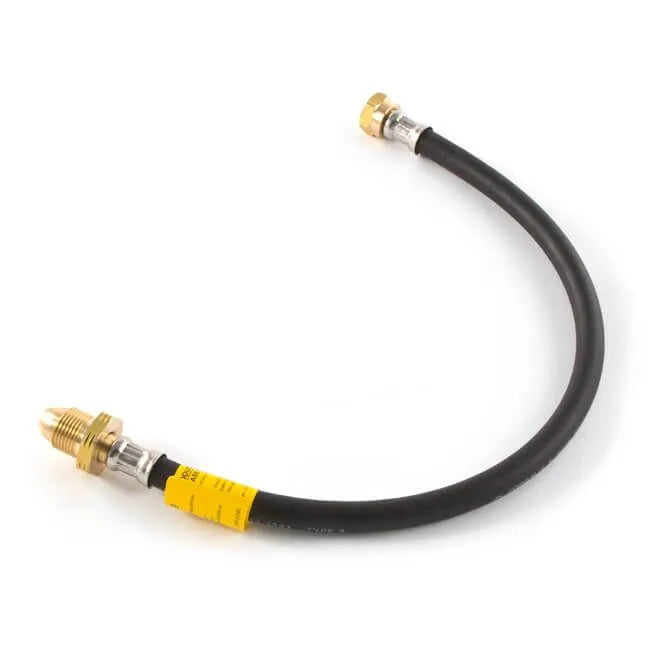

Straight through POL+ 5/8" LH nut x W20 nut and tail, unbraided.
High pressure black hose to (and marked) BS 3212:1991 Type 2. A yellow self adhesive advisory label is attached. Some assemblies available with rodent proof galvanised multi-plait overbraid. S/T indicates straight through. For Propane only.
Specification
| Application | Propane |
| Braiding | Unbraided |
| Standards | BS 3212:1991 Type 2 |
| Burst Pressure | 69 bar |
| Colour | Black |
| Connection | S/T POL + 5/8" LH Nut x W20 Nut + Tail |
| Gas Type | Propane |
| Inside Diameter | 6.3 mm |
| Length | 20" |
| N/R or S/T | S/T |
| Operating Pressure | Working pressure: 20 bar |
| Outside Diameter | 15.5 mm |
| Suitable Application | Propane |
| Type | Pigtail Assembly |
